The industry’s first heat pump charged with non-ozone depleting refrigerant, R410A.
Features:
- 100% pure titanium heat exchanger assures corrosion-free performance for extra long life.
- LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages – no more codes.
- AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool termperatures.
- Automatic defrost feature senses refrigerant temperature and prevents
- UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures.
- Compatible with ALL automated control packages.
- Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals.
- Emerson Copeland Scroll Compressor on 60Hz, single phase models ETL listed for safe operation.
- Thermostatic Expansion Valve (TXV) controls refrigerant flow for optimum effciency and BTU output over a wider operating range.
- Highest effciency available, meets or exceeds existing codes and standards
BTU and effciency performance independently certified by the Air-Conditioning, - Heating and Refrigeration Institute, AHRI.
Available:
- ULTRATEMP 70 HEAT PUMP (Colour: ALMOND) – 230V, 40A, IPH – rated @ 75 BTU Input
- ULTRATEMP 120 HEAT PUMP (Colour: ALMOND) – 230V, 50A, IPH – rated @ 125 BTU Input
Links:
Brochures:
- UltraTemp_Heat Pump_Installation and User’s Guide.pdf
- UltraTemp_Heat Pump_Owner’s Manual Addendum_English,French,Spanish.pdf
- Ultra Temp_Heat Pump_Brochure_English.pdf

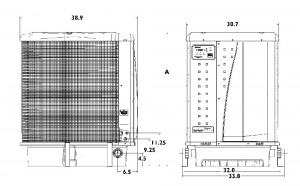

Drawings:
